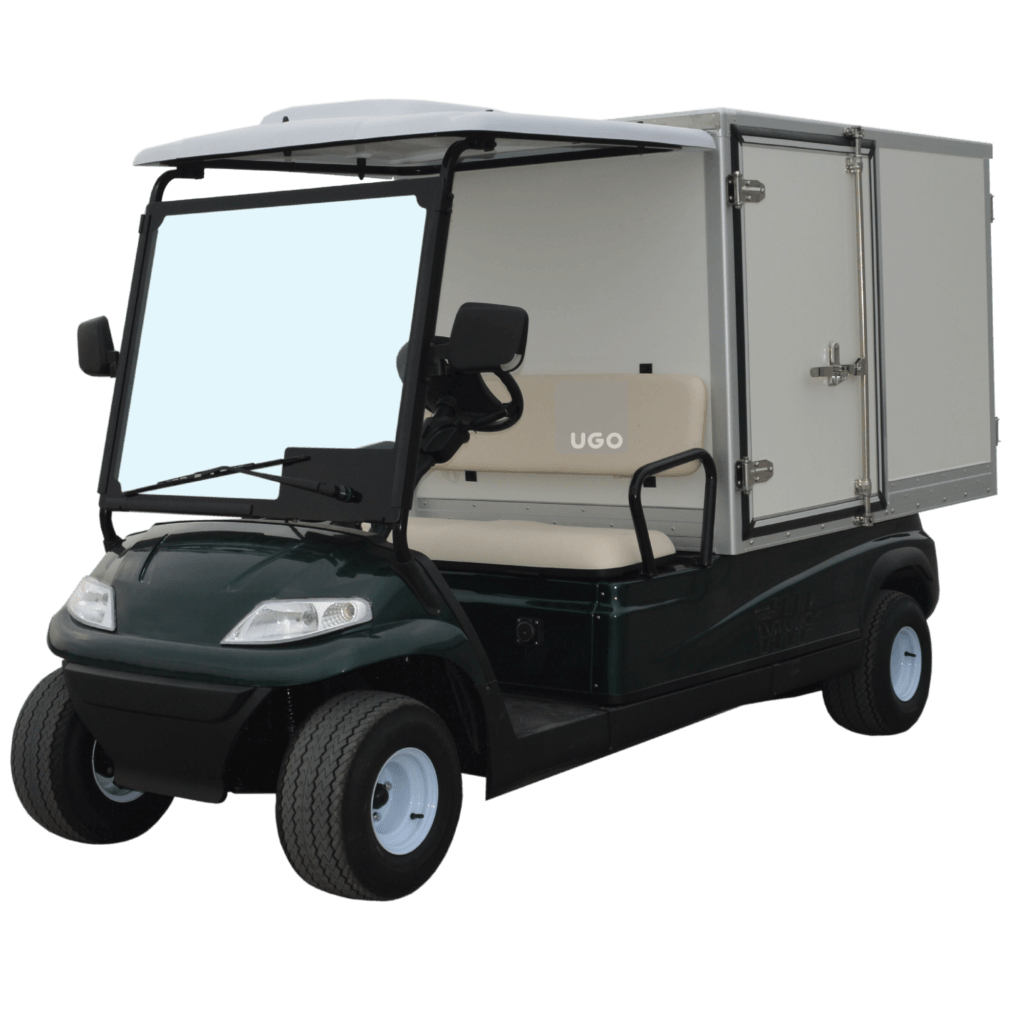

Model | A627.GC |
Passenger capacity | 2 |
System | 48V 4KW AC system |
Battery | 8V*6pcs (Deep Cycle / Maintenance Free / Lithium Option) |
Motor | 48V/4KW AC Motor |
Controller | Toyota 48M-350A |
Charger | On-Board Charger 48V/25A |
Tranaxle | with 16:1 gear ratio |
Range (loaded) | 70-90 km |
Max. speed | 25 km/h |
Minimum turning radius | 4.1 m |
Safe climbing ability (loaded) | 20% |
Brake distance | <6 M |
Min. ground clearance (mm) | 95 mm |
Tread (mm) | front 885 mm / rear 992 mm |
Wheelbase (mm) | 2390 mm |
