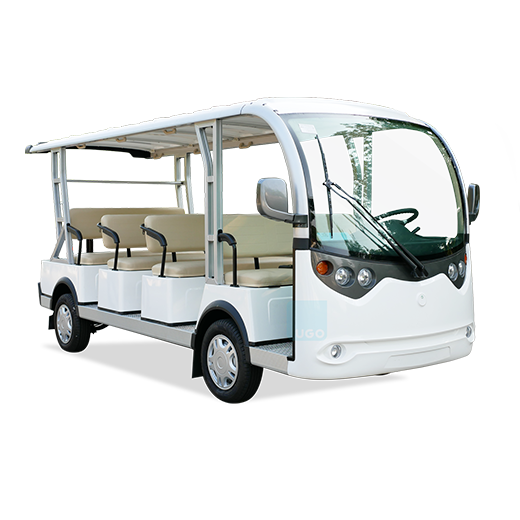

S11 Sightseeing Shuttle
| Model | S11.C |
| Passenger capacity | 11 |
| System | 72V 7.5KW AC system With CE Certificate for EU |
| Battery | Maintenance-free battery 6v-170AH*12pcs or Trojan T-105 6v *12pcs |
| Motor | AC 51V/7.5KW motor |
| Controller | ToYoTa 80L330A - 330A |
| Charger | Offboard charger 72V 25A |
| Tranaxle | with 16:1 gear ratio |
| Range (loaded) | 90 – 110 km |
| Max. speed | 30 km/h |
| Minimum turning radius | 5.5 m |
| Safe climbing ability (loaded) | 20% |
| Brake distance | 4.9 m |
| Curb weight(including battery) | 1120 kg |
| Min. ground clearance (mm) | 180 mm |
| Tread (mm) | Front1 280 / Rear 1320 mm |
| Wheelbase (mm) | 2680 mm |
