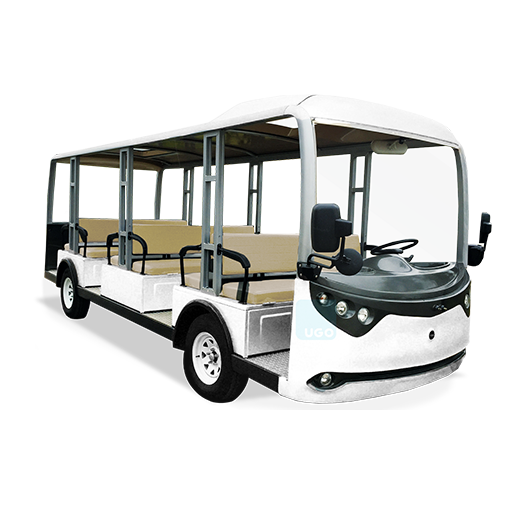

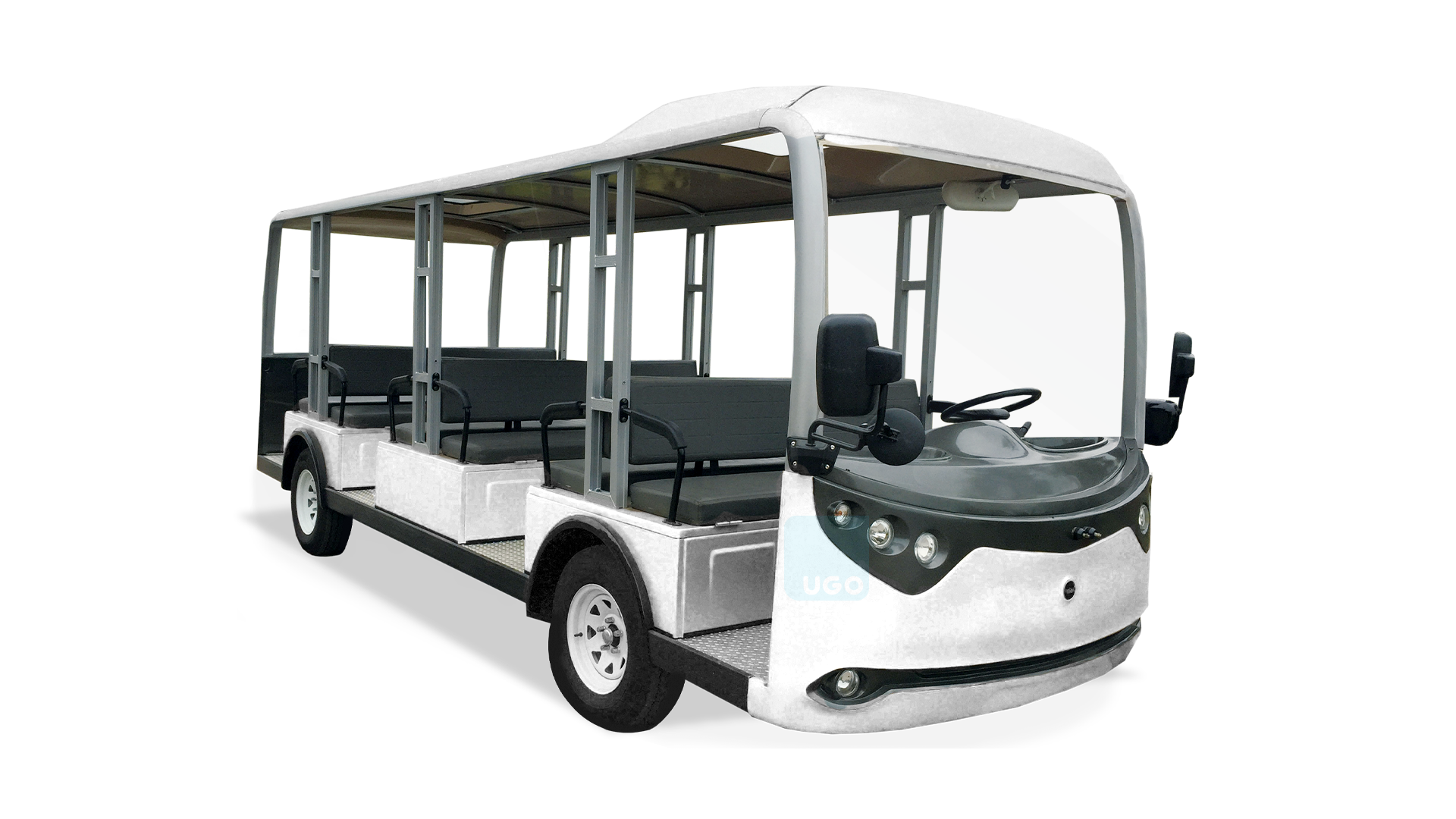

S23 Sightseeing Shuttle
| Model | S23 |
| Passenger capacity | 23 |
| System | 96V 13.5KW AC system |
| Battery | maintenance-free battery 6V-200AH *16PCS(3Hr Rate) |
| Motor | AC Motor 61V/13.5KW |
| Controller | Curtis 96V-1238/550A |
| Charger | Intelligent charger 96V/25A |
| Tranaxle | with gear ratio 18:1 |
| Range (loaded) | 100 - 120 km |
| Max. speed | 28 km/h |
| Minimum turning radius | 6.4 m |
| Safe climbing ability (loaded) | 20% |
| Brake distance | 4.9 m |
| Min. ground clearance (mm) | 250 mm |
| Tread (mm) | Front 1440 /Rear 1595 mm |
| Wheelbase (mm) | 3230 mm |
